The Biomethanation Plant Process: 5 Key Stages from Waste to Renewable Energy

Ever wondered how agricultural residue, food scraps, and manure are transformed into a powerful, renewable energy source capable of powering homes and vehicles? The answer lies in the sophisticated yet naturally-inspired biomethanation plant process. This technology is more than just waste management; it's a sophisticated biorefinery that converts organic matter into valuable biomethane and biofertilizer.

For investors, engineers, and sustainability professionals, a deep understanding of the biomethanation plant process is crucial for optimizing efficiency, maximizing output, and ensuring a strong return on investment. This guide will walk you through the five fundamental stages that define a modern biomethane facility, breaking down the science and engineering into an easy-to-follow blueprint.

Stage 1: Feedstock Reception and Pre-Treatment - Preparing the Raw Material

The entire biomethanation plant process begins with the raw materials, known as feedstock. Not all organic waste is created equal, and its preparation directly impacts the efficiency of the subsequent stages.

Feedstock Reception: Trucks deliver a variety of organic materials to the plant. Common feedstocks include:

Agricultural Waste: Manure, crop residues (e.g., straw, corn stover).
Industrial Waste: Food processing waste, slaughterhouse by-products.
Municipal Waste: Source-separated organic waste (food scraps), sewage sludge.
Upon arrival, the feedstock is typically weighed and sampled for analysis to determine its organic composition and potential contaminant levels.

Pre-Treatment - The Crucial First Step: This is where the material is prepared for optimal digestion. Key steps often include:

Screening and Removal of Contaminants: Inerts like plastics, metals, and stones are removed using sieves and magnets. This is critical to protect downstream equipment.
Pasteurization/Hygienization: To meet stringent environmental and safety standards, especially for animal by-products, the feedstock is heated to a specific temperature (e.g., 70°C for 1 hour) to eliminate pathogens.
Size Reduction and Homogenization: Shredders and grinders break down the material into smaller, uniform particles. This dramatically increases the surface area, making it easier for microbes to access and digest the organic matter. A well-homogenized slurry, often mixed with recirculated process water, ensures a stable and efficient anaerobic digestion process.

Stage 2: The Anaerobic Digestion Process - The Heart of the Plant

This is the core biological phase where the magic happens. The pre-treated feedstock is fed into a large, sealed, and insulated tank called a digester or fermenter. In the absence of oxygen, a consortium of microbes goes to work, breaking down the complex organic molecules.

The anaerobic digestion process itself occurs in four sequential biological phases:

Hydrolysis: Complex polymers (carbohydrates, proteins, fats) are broken down into simpler monomers (sugars, amino acids, fatty acids) by hydrolytic bacteria.
Acidogenesis: The products of hydrolysis are further converted by acidogenic bacteria into volatile fatty acids, ammonia, CO₂, and hydrogen sulfide.
Acetogenesis: Here, the volatile fatty acids are transformed into acetic acid, hydrogen, and more carbon dioxide by acetogenic bacteria.
Methanogenesis: In this final step, methanogenic archaea consume the acetic acid, hydrogen, and CO₂ to produce a mixture of gases—primarily methane (CH₄) and carbon dioxide (CO₂). This raw gas is known as biogas.

Digesters are meticulously controlled environments. Operators constantly monitor and adjust temperature (mesophilic ~35-40°C or thermophilic ~50-60°C), pH level, and retention time to create the ideal conditions for these microbes, ensuring a consistent and high-yield biomethanation plant process.

Stage 3: Biogas Storage and Conditioning - Holding and Preparing the Gas

The raw biogas produced in the digester is not yet ready for use. It is typically composed of 50-65% methane, 30-45% carbon dioxide, and trace elements like hydrogen sulfide (H₂S) and water vapor.

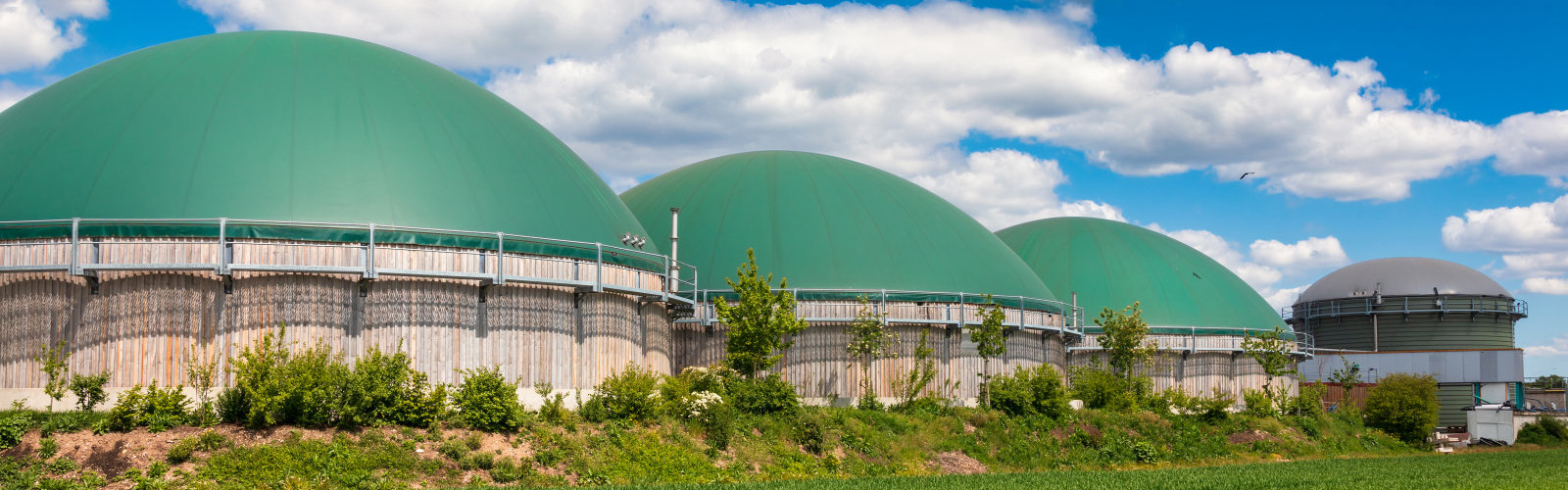

Storage: The biogas is first piped into a storage holder, often a double-membrane roof on the digester tank or a separate flexible gas bag. This buffer storage balances the continuous production of gas with the often-batch operation of the next stage.
Conditioning: Before upgrading, the gas undergoes preliminary treatment:

Hydrogen Sulfide (H₂S) Removal: H₂S is highly corrosive and can damage equipment. It is removed using techniques like air dosing into the digester headspace or passing the gas through a bed of iron oxide.
Dewatering: The gas is cooled to condense and remove water vapor, preventing corrosion and icing in downstream components.

This conditioning step is vital for protecting the sensitive and expensive equipment in the core upgrading phase of the biomethanation plant process.

Stage 4: Biogas Upgrading to Biomethane - The Purification Core

This is the technological centerpiece that transforms standard biogas into high-purity, pipeline-quality biomethane. The goal is to separate and remove the CO₂ and other inert gases to increase the methane concentration to over 96-99%. Several technologies are employed by international bio-gas upgrading equipment manufacturers, each with its own advantages:

Membrane Separation: This is a widely adopted method. The biogas is compressed and fed into a series of hollow-fiber membranes. CO₂ and other gases permeate through the membrane walls, while a stream of high-purity methane passes through the center. This technology is prized for its energy efficiency, compact footprint, and reliability, making it a popular choice in the modern biomethanation plant process.
Water Scrubbing: This process uses the higher solubility of CO₂ and H₂S in water compared to methane. Biogas is pressurized and brought into counter-current contact with water in a scrubbing column, which absorbs the CO₂ and H₂S. The water is then regenerated by releasing the pressure.
Pressure Swing Adsorption (PSA): In this method, the biogas is passed through a vessel containing a specialized material (like activated carbon or zeolites) that adsorbs CO₂, nitrogen, and oxygen under pressure. The methane passes through. Once the material is saturated, the pressure is released to regenerate it, typically using multiple vessels in a cyclic process.
Chemical Scrubbing: Similar to water scrubbing, but uses a chemical solvent like amine solutions that have a high affinity for CO₂. This method offers very high purity levels and efficient solvent regeneration.

The selection of the upgrading technology is a critical decision that impacts the capital cost, operational expenditure, and final gas quality of the entire biomethanation plant process.

Stage 5: Gas Grid Injection, Compression & Digestate Processing

With the biomethane purified, the final stage focuses on product utilization and byproduct management.

Gas Grid Injection or Vehicle Fuel Production:

Grid Injection: The biomethane isodorized (for safety, just like natural gas) and compressed to the correct pressure before being injected into the local natural gas grid. This requires a metering station and a strict quality control agreement with the grid operator.
Vehicle Fuel (Bio-CNG/LNG): Alternatively, the biomethane can be compressed to high pressures (for Bio-CNG) or liquefied (for Bio-LNG) and used to fuel vehicles at dedicated refueling stations.

Digestate Processing - Closing the Loop: The nutrient-rich liquid and solid residue left in the digester, called digestate, is a valuable co-product. It is typically separated into:

Liquid Fraction: A potent, nutrient-rich bio-fertilizer that can be used directly in agriculture, reducing the need for synthetic fertilizers.
Solid Fraction: Can be composted, used as a soil conditioner, or even processed into horticultural growing media.

This final step completes the circular economy model, ensuring that nearly every input in the biomethanation plant process is converted into a useful output, leaving minimal waste.

Frequently Asked Questions (FAQs)

Q1: What is the fundamental difference between biogas and biomethane?
A1: The key difference is purity. Biogas is the raw gas directly from the digester, containing 50-65% methane, along with significant CO₂ and impurities. Biomethane is the refined product of the biomethanation plant process, where CO₂ and other gases have been removed, resulting in a methane content of over 96%, making it interchangeable with fossil natural gas.

Q2: How long does the complete anaerobic digestion process take inside the digester?
A2: The total time, known as the Hydraulic Retention Time (HRT), varies significantly based on feedstock and temperature. For common substrates like manure and energy crops in a mesophilic digester, the HRT typically ranges from 20 to 40 days. Thermophilic processes can be faster, sometimes as short as 14 days, as the higher temperature accelerates microbial activity.

Q3: Can multiple types of feedstock be processed together in a biomethanation plant?
A3: Absolutely. This practice is called co-digestion and is highly encouraged. By mixing different feedstocks (e.g., manure with food waste or crop residues), operators can create a more balanced nutrient profile for the microbes, often leading to a significantly higher biogas yield than would be possible with a single feedstock.

Q4: What happens to the carbon dioxide (CO2) that is removed during the upgrading process?
A4: Traditionally, the separated CO₂ was simply vented to the atmosphere. However, new opportunities are emerging. This high-purity CO₂ stream can be captured and utilized in various industries, such as in greenhouses to enhance plant growth, in the food and beverage industry, or even for the production of synthetic fuels. This "carbon capture and utilization" (CCU) further enhances the environmental credentials of the biomethanation plant process.

Q5: Is water consumption a significant concern in a biomethanation plant?
A5: Water is a crucial component, primarily used to create a pumpable slurry in the pre-treatment stage. However, modern plants are designed to be highly efficient with water use. Process water is often recirculated from the digestate treatment stage back to the beginning of the process, dramatically reducing the need for fresh water and closing another loop within the system's operation.
