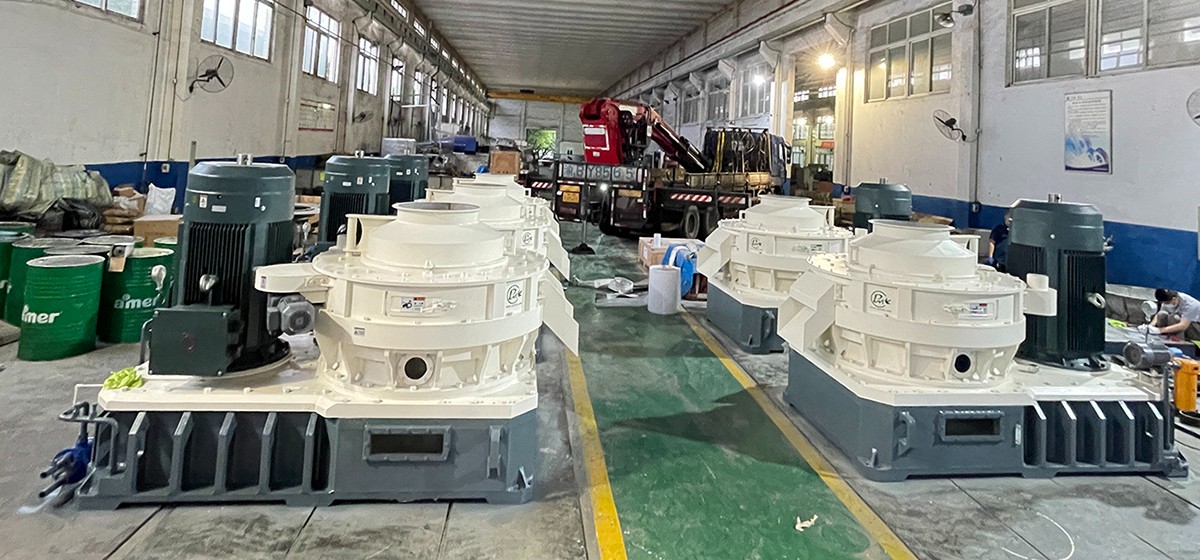

2in1 Unit Combine Grinding and Pelletizing Machine

OPM offers the supply of turnkey plants for the Pretreatment of raw material for biogas plants (2G Bio-Ethanol) including the following steps:

· Coarse Shredder for Fiberous material like Corn Stalks/Corn Stover/Paddy Straws

Napier Grass, EFB, Wheat Straws, etc.

· Combine Milling and Pelletizing Machine.

· Shorten the fermentation time from 28 days to 3-7 days by using Steam Explosion.

· Pelletize the Sludge from AD tank as the alternative fuel for power plant.

Equipment List

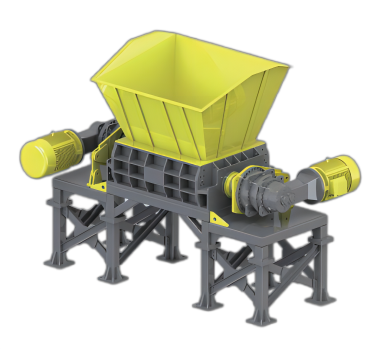

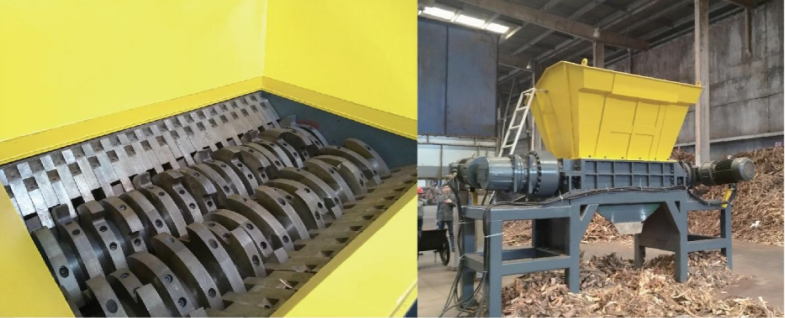

Double Shaft Shear Shredder

Double shaft shredder can be used for shredding most of wastes,such as the municipal solid waste,
wood waste,waste tyre, metal drum,plastic,RDF,biomass,etc. High capacity and high torque.

Application:
MSW shredding
RDF shredding
Industry waste shredding
Particle size after shredding: 50-150mm

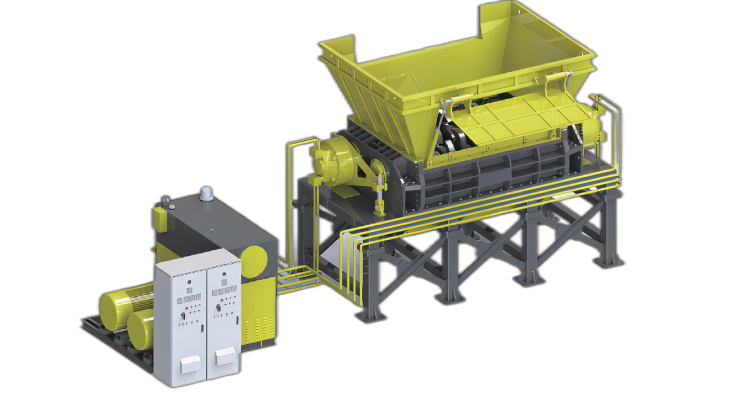

Drive:Electric motor or Hydraulic drive optional

Model	BEKEN-DS-2180	BEKEN-DS-32120	BEKEN-DS-40160	BEKEN-DS-50180	BEKEN-DS-61240
A(mm)	2760	2900	4180	5691	6400
B(mm)	1060	1850	2150	2160	2400
C(mm)	800	1200	1600	1800	2400
D(mm)	480	690	850	1120	1490
H(mm)	1850	2115	2530	3042	3330
Cutter rotary diameter(mm)	φ284	φ430	φ514	φ660	φ800
Shaft speed(rpm)	14	15	11	23	7.5
Cutter QTY(pcs)	40	30	32	22	48
Cutter thickness(mm)	20	40	50	80	50
Motor(KW)	7.5+7.5	22+22	45+45	55+55	90+90

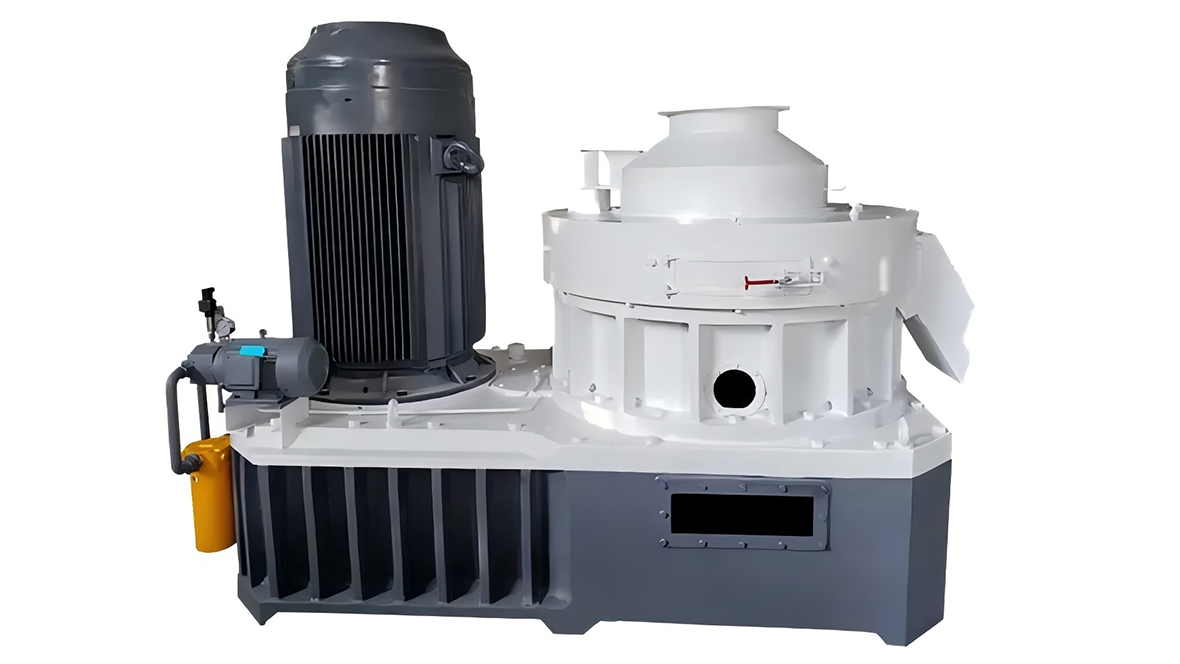

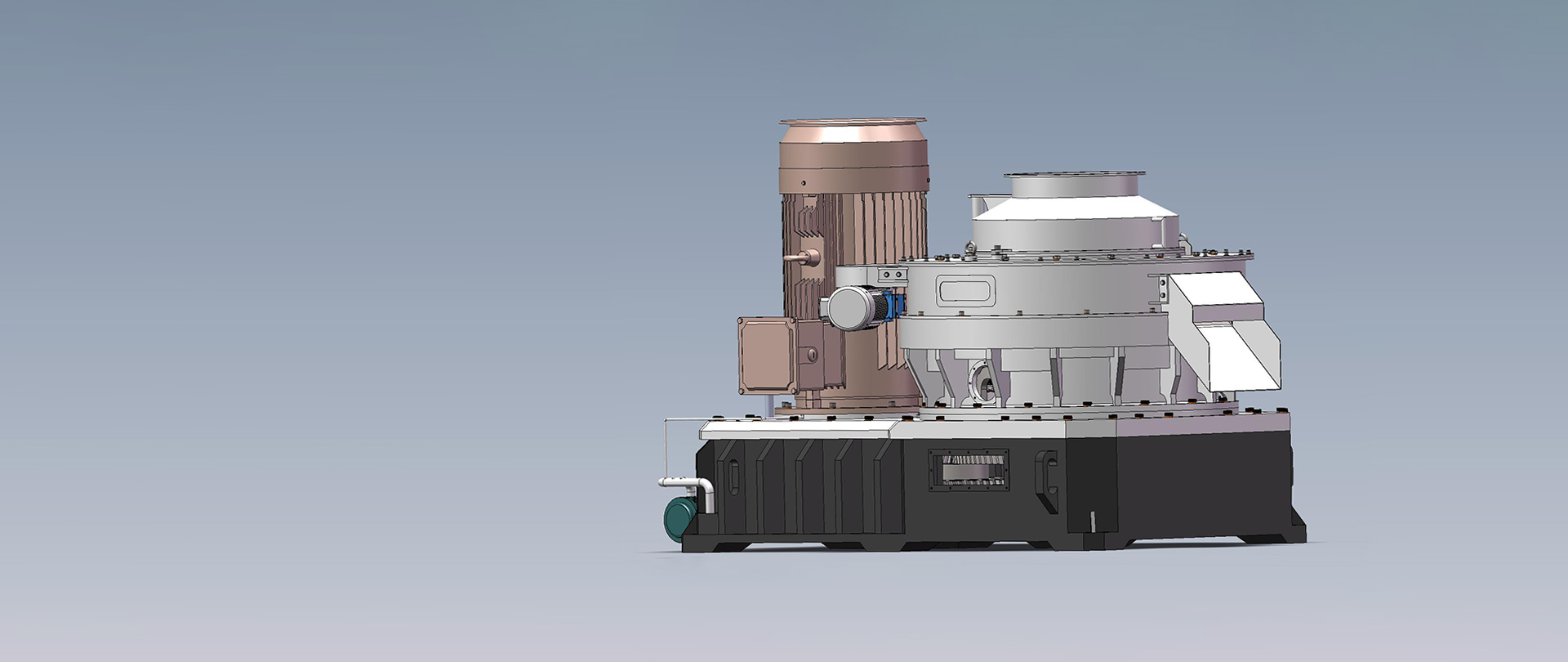

Technical Data Sheet

Model OSK		OSK 75	OSK220	OSK315	OSK510
Die	inside Diameter(mm)	580	780	980	1250
Die	Capacity(T/H)	0.8-1	3-4	5-6	9-11
Roller	Quantity	3	3	4	6
main motor	power(kw)	75	220	315	510
Feeder	motor(kw)	1.5	2.2	3	5.5
Feeder	speed(rpm)	500	500	500	500
outline dimension	mm	2800x1200x1650	3200x1600x1800	3200x1700x2100	3530x1985x2075
Weight	N.W	4500kgs	10000kg	14390kgs	21500kgs

Main Features

1. Low Speed of Electric motor
High Torque from low speed will make sure good quality of pellets

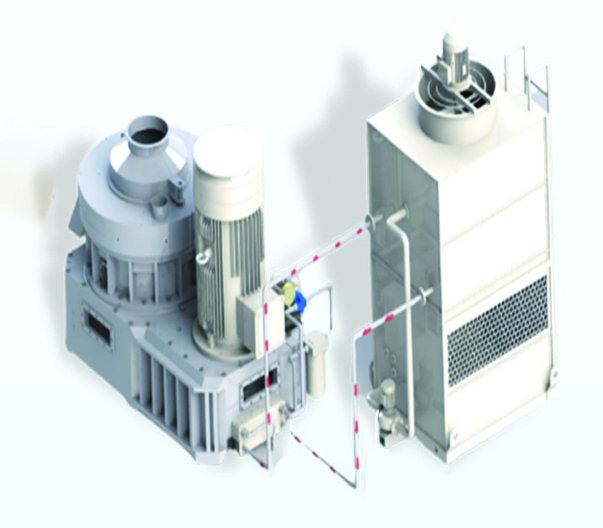

2. External Cooling Tower make sure the long operation time each day (occassionally, 24/7 will be acceptable. )
3. Helical Gear box
Std of Accuracy of CNC machining same as Wind turbine gear box Grade 6, less than 0.8μm
4. Fully surrounded air will cool down the ring die and lower down the ash inside pellets.
5. No Bearing inside roller shell (underneath）
Unique patent design, save huge cost of grease and bearing and shorten the breakdown time
6. Innovated bearing system for pellet cutter low down the noise and vibration of pellet mill
7. Several Glass Viewing Window visualize the lubrication system inside the pellet mill.

8. 13 Years experience to develop biomass pellet mill.
9. Local team for after sales technical support.
10. Deploy new technology for production line and consumable parts.
11. Customized design and build
12. Hands on plant operation experience.
13. Monthly Capacity for our pellet mill is at least 30% higher than any other brands of pellet mill with sameoutput ofeletric motor (Energy is saved by 30%)
14. Monthly cost of spare parts (bearing/grease), since we do not have consumption of bearing and grease, the operational cost is only the ring die and roller shell oil seal, aramid packing, etc. Only 1/3-1/2 ofthe the other brands. (refer to the bar chart for consumption of bearing/ grease and service time of roller shell/die )
15. Monthly profit will be higher than other brands of pellet mill of same output.
