Pellet Mill

• Low Speed of Electric motor
High Torque from low speed will make sure good quality of pellets
• External Cooling Tower make sure the long operation time each day (occassionally, 24/7 will be acceptable. )
• Helical Gear box
Std of Accuracy of CNC machining same as Wind turbine gear box Grade 6, less than 0.8μm

• Fully surrounded air will cool down the ring die and lower down the ash inside pellets.

Equipment List

Technical Data Sheet

Model OSK		OSK 75	OSK220	OSK315	OSK510
Die	inside Diameter(mm)	580	780	980	1250
Die	Capacity(T/H)	0.8-1	3-4	5-6	9-11
Roller	Quantity	3	3	4	6
main motor	power(kw)	75	220	315	510
Feeder	motor(kw)	1.5	2.2	3	5.5
Feeder	speed(rpm)	500	500	500	500
outline dimension	mm	2800x1200x1650	3200x1600x1800	3200x1700x2100	3530x1985x2075
Weight	N.W	4500kgs	10000kg	14390kgs	21500kgs

Main Features

1. Low Speed of Electric motor
High Torque from low speed will make sure good quality of pellets
2. External Cooling Tower make sure the long operation time each day (occassionally, 24/7 will be acceptable. )
3. Helical Gear box
Std of Accuracy of CNC machining same as Wind turbine gear box Grade 6, less than 0.8μm
4. Fully surrounded air will cool down the ring die and lower down the ash inside pellets.
5. No Bearing inside roller shell (underneath）
Unique patent design, save huge cost of grease and bearing and shorten the breakdown time
6. Innovated bearing system for pellet cutter low down the noise and vibration of pellet mill
7. Several Glass Viewing Window visualize the lubrication system inside the pellet mill.

8. 13 Years experience to develop biomass pellet mill.
9. Local team for after sales technical support.
10. Deploy new technology for production line and consumable parts.
11. Customized design and build
12. Hands on plant operation experience.

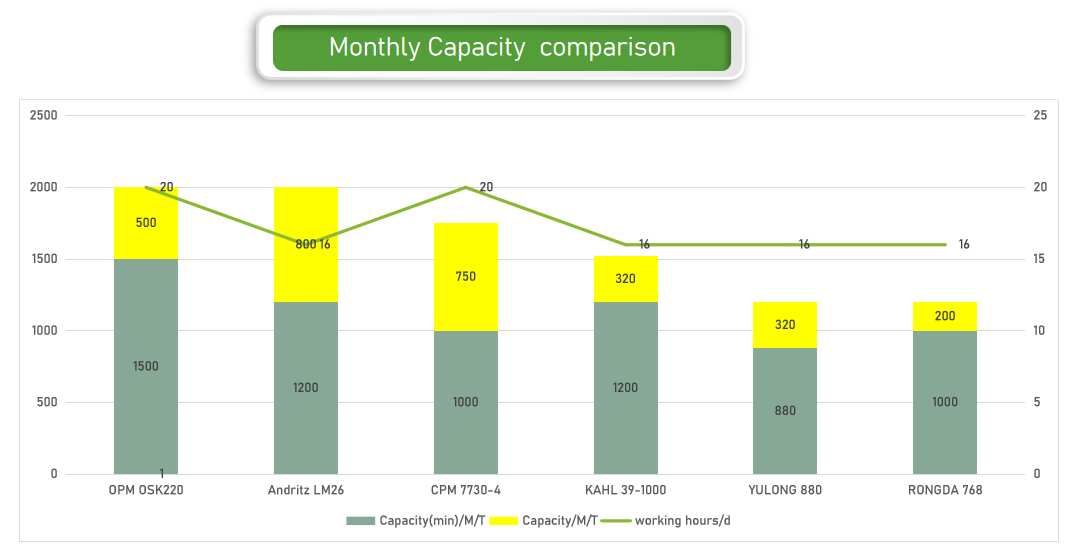

13. Monthly Capacity for our pellet mill is at least 30% higher than any other brands of pellet mill with sameoutput ofeletric motor (Energy is saved by 30%)

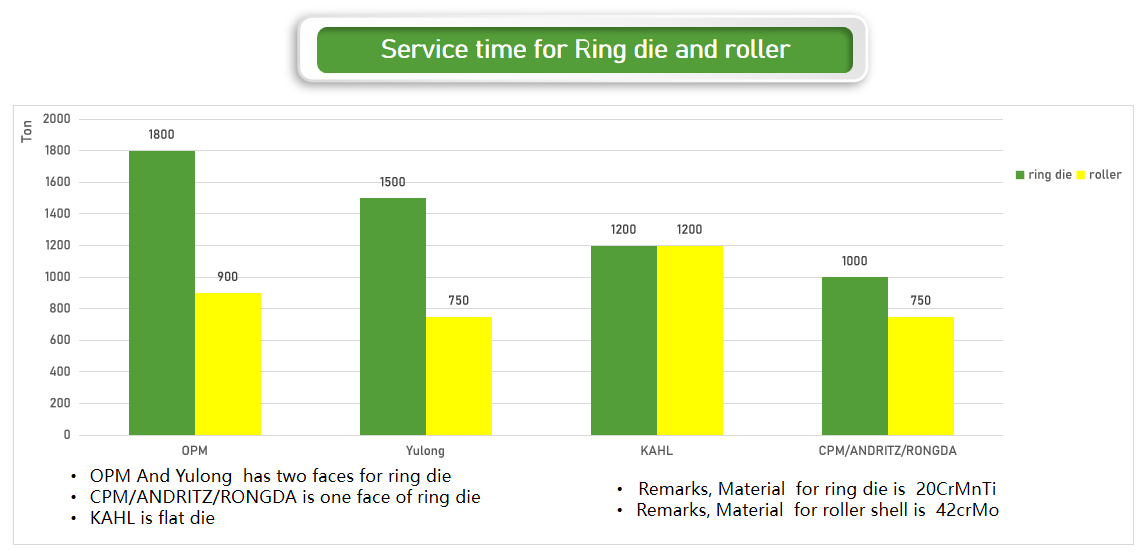

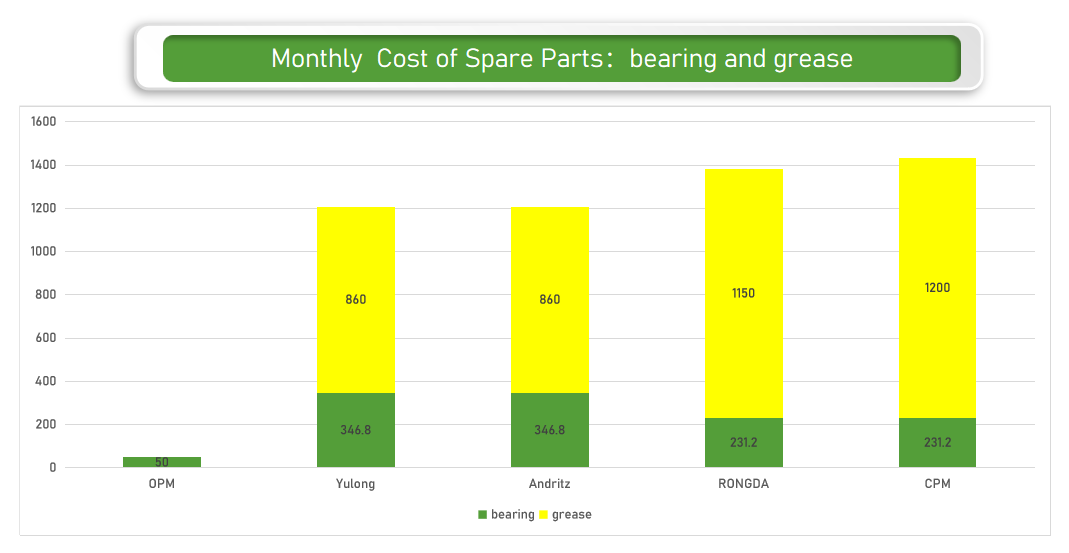

14. Monthly cost of spare parts (bearing/grease), since we do not have consumption of bearing and grease, the operational cost is only the ring die and roller shell oil seal, aramid packing, etc. Only 1/3-1/2 ofthe the other brands. (refer to the bar chart for consumption of bearing/ grease and service time of roller shell/die )

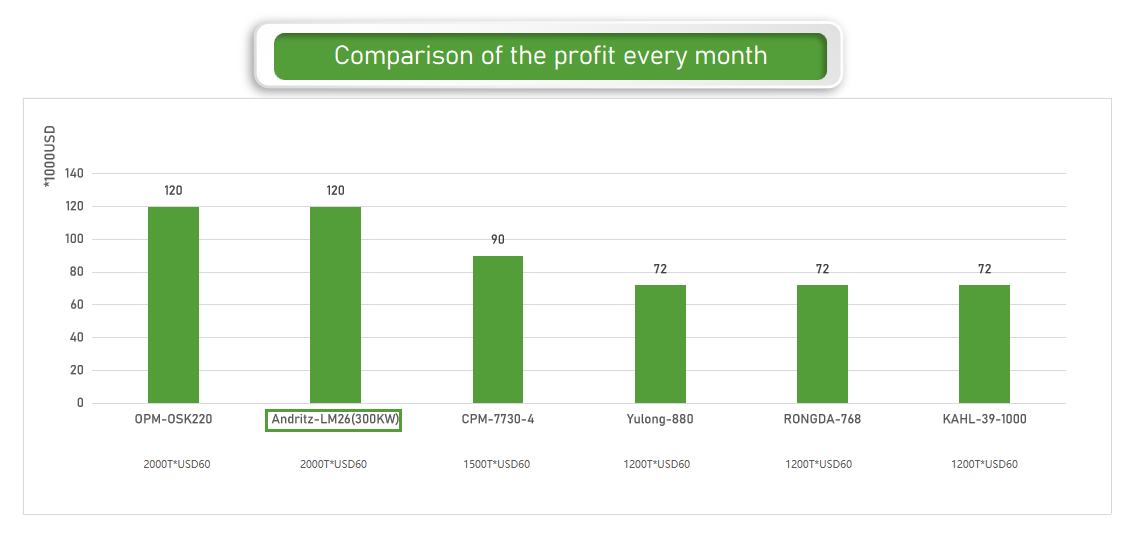

15. Monthly profit will be higher than other brands of pellet mill of same output.
