OPM LNG Liquefaction
OPM LNG Liquefaction

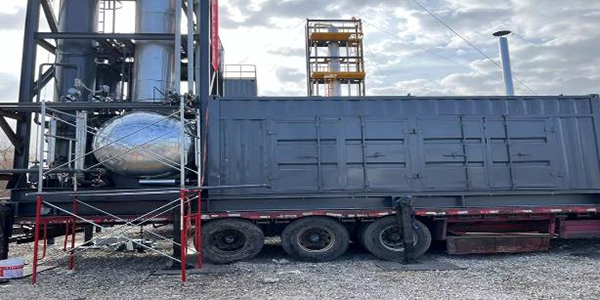

The LNG Liquefaction Skid is a modular system integrating gas pretreatment, cryogenic
liquefaction (-162°C), and storage. Designed for distributed energy and small-scale gas fields, it
features rapid deployment, low energy consumption (<0.35 kWh/Nm³), and compact LNG storage
(1/600 volume reduction), ideal for remote or offshore applications. Because of our standard design,
lead time can be squeezed to as short as 5-7 months.
Equipment List
Parameters
| Parameter | Value |
| Capacity | 5-300 TPD |
| Power Consumption | 0.35-0.42 kWh/Nm³ |
| Application | Onshore Gas Fields,Floating LNG (FLNG) |
Modular LNG Innovation

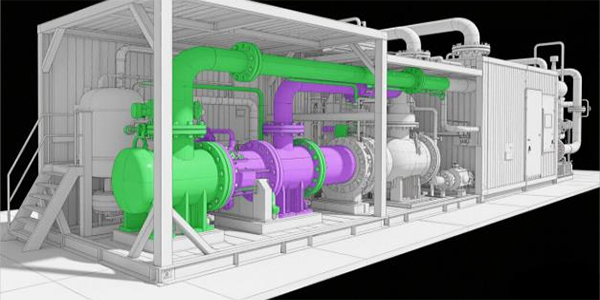

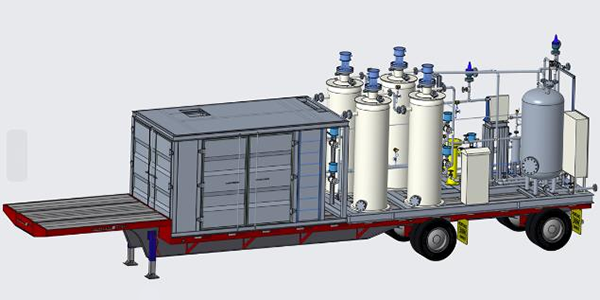

The skid-mounted LNG system revolutionizes liquefaction with plug-and-play modules (purification, liquefaction, control), enabling installation and commissioning within 14 days with 50% installation cost reduction. Compatible with pipeline gas, well head gas, biogas, associated gas, etc. LNG can be used to power green trucks and shipping vessels, enabling to achieve zero-carbon industrial parks, and accelerating net-zero transitions.
| Advantage | Comparison with Conventional LNG Plant |
| On-site Installation &Commissioning | 14 Days vs.12-24 Months |
| Cost | 50%Installation cost Reduction |
| Flexibility | Apply to Multi-gas Source vs.Single Gas Source |
| Mobility | Can be designed as Movable modular skids |
Our Advantages
Quality
CE Certificate & 1 Years Warranty, the film has high purity, good compactness and uniformity
Service
After-sales team of 35 people, overseas after-sales service is available.
R & D
50 R&D personnel with more than 10 years experience. More than 60+ patents.
Customizable
Multiple coating technologies in a single system.
