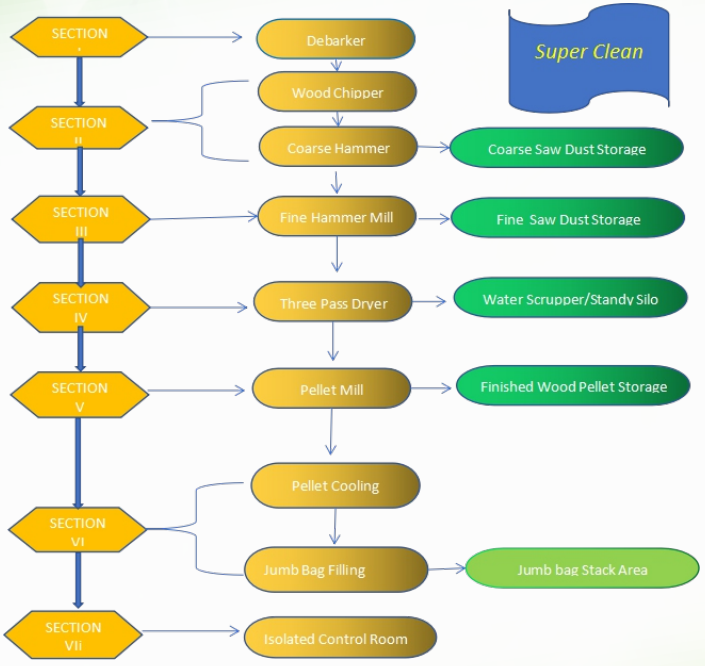

WOOD PELLET PROCESS FLOWCHART

Remarks:
1.Quality of debarker/Hammer Mill/Dryer/Pellet mills,etc are top level in china.（Chipper is suitable for big wood logs<45cm)
2.Storage bin for saw dust is specially designed, although some power is consummed on this stage, but the full production line is completely automatical.
3.Isolated Control Room with Laptop will easily monitor the whole process of production
4.The whole production line is integrated and super clean.

Applications

* Low Temperature Hemp Leaves Pelleting
* Dry Ice Pelleting
* Animal Feed
* Saw dust and other types of biomass
* Compost
* Organic Fertilizer
* Rest of food and other garbage
* Bran and Cereal Mix
* Colza and sugar beet pulp
* Alfalfa, straw and hay
* Paper and plastic (RPF)
* Rurban solid waste

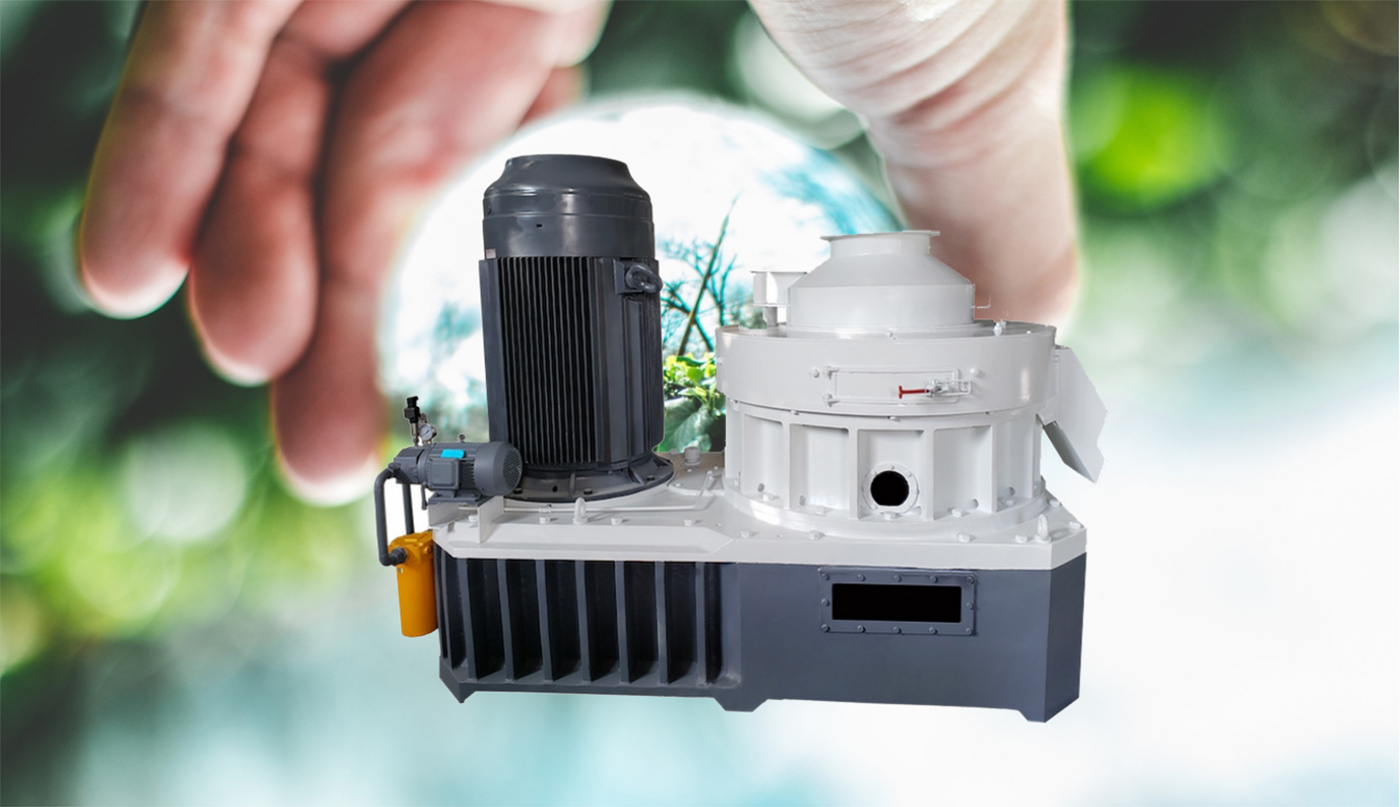

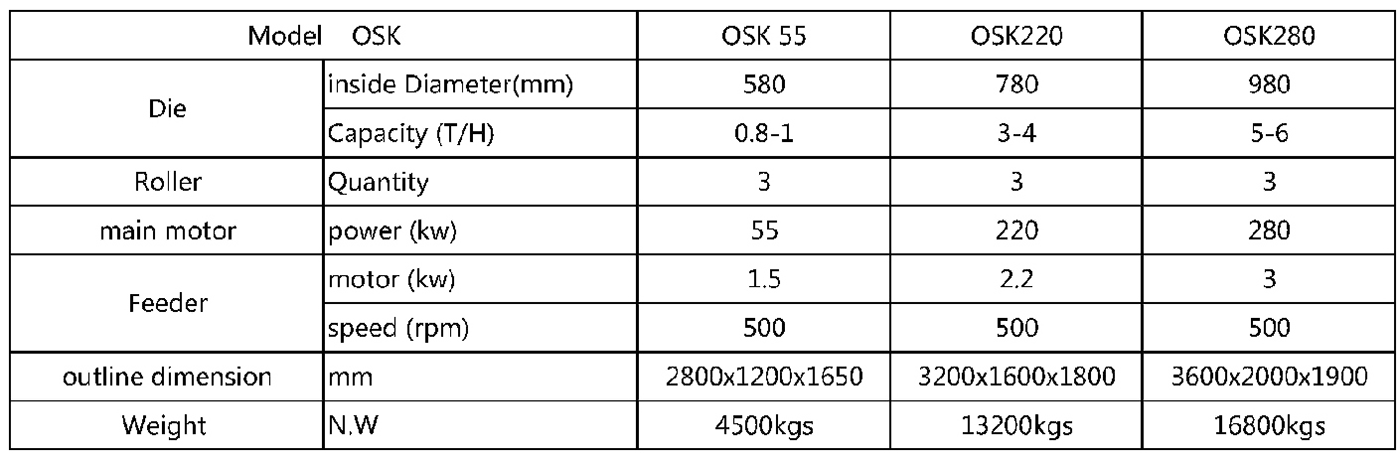

Main Features

* Pellet Cutter (We invent new design of bearing to extend service time for the cutter )
* Helical Gear (the design service time will be 15- 20 years )
* Brand of eletric motor is famous and the speed of the electric motor is 4P/6P
* Heat Exchange plate is installed to cooling down the oil to make sure temperature is lower than 60 ℃
* No Bearing inside the roller shell (but underneath)
* Two Layers of ring die will extend service time a lot, circled groove will prevent the dust leaking effectively.
* Oil Filter to clear up the oil all the time to extend the service time for all the bearing inside.

Debarker(output77KW)

Heavy Duty Twin Shaft Debarker

Output(one section)	30KW+7.5KW (Chinese famous brands of eletric motor)
Reducer	H series Gear Box (Harden Surface) (Chinese famous brand)
Qty of Teeth	96 pcs (25mm thickness) --Casting Material (Changable)
Roller	Seamless Pipe 12mm
Outline Dimension	5600x1950x2150mm
Width of Groove	1415mm
Thickness of Steel	20mm
Bearing	Chinese Heavy duty bearing
Weight of each section	9000kgs.

Chipper

220KW 15-20T/H (Log <=30cm)

Rotor diameter	1000mm
Rotor Speed	550rpm
Capacity	75m3/H
Feeding size	330mm*1050mm
Number of rotor knives	4*2 pcs
Feeding Speed	37m/min
Main drive motor power	220KW
Feeding power(frequency)	7.5KW+7.5KW
Hydraulic oil pump motor	2.2KW
Finished Chip length(mm)	15mm
Outline Dimension (mm)	9640x3500x1500mm

Hammer Mill

Main drive motor power	180KW
Feeding Belt Conveyor	4KW
Capacity	5-7t/h
Hammer Qty	100
Hammer Material	High Mn Steel
Hammer Life Time	3-5 months
Rotor Rotation	2000
Static Knives	4 PCS
Cyclone	1800MM
Fan(Positive)	18.5KW
Dust Collector	30
Air Lock(BF-650)	3KW
Output Belt Conveyor	4KW
Gross Weight	5.6T
Overall Dimension	250027003100mm
